Price
US $400-700
Model
JJAC
Min. Order
1 piece

Item specifics

Gas displacement
1-65 m3/min
The hole diameter
83-130mm
Drilling Depth
Max.500m
Power Type
Diesel

Product review

Description

Refrigerated Type Air Dryer for compressor China supplier

Advantage

1. Stable exhaust pressure dew point, no ice blockage

2. Efficient refrigeration control system
3. Improve the service life and reliability of pneumatic tools and equipment

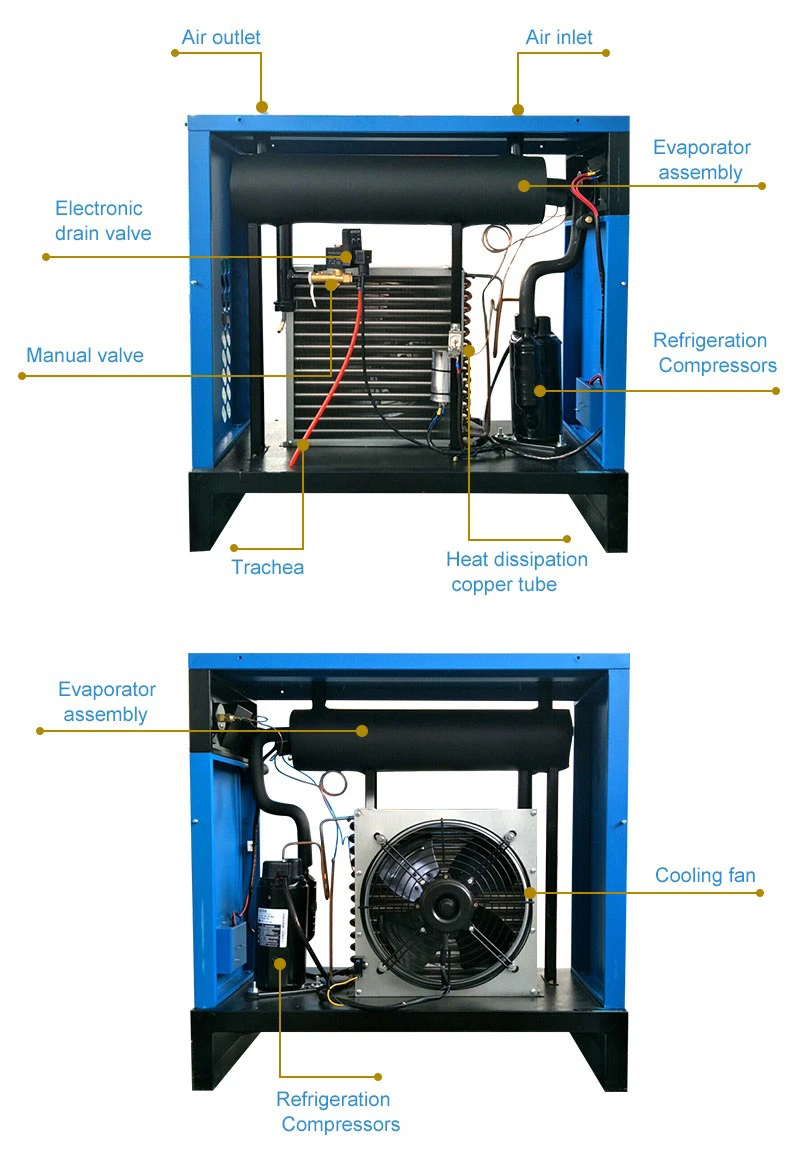

Integrated design with precooler, evaporator and separator, high-efficiency heat exchange plate-fin heat exchanger ensures that the dryer provides industrial grade drying solutions; The refrigeration system uses low-energy refrigeration compressors, air-cooled condensers, environmentally friendly refrigerants R134A and R410A, and the whole machine is environmentally friendly and energy-saving. It features the new intelligent controller: It combines dew point display and fault alarm function. Reliable operation, leave out maintenance troubles. Industrial grade imported motor refrigeration compressor. Advanced piping design, few welds in the industry, reducing the risk of refrigerant leakage. Assembly line install, strict factory leak detection, pressure-tight test. Simple design, small size and easy operation. Integrated design with precooler, evaporator and separator, more compact. The succinct appearance design ensures the convenience of field installation. New Intelligent Controller: It integrates dew point display and fault alarm functions.


Model
Gas displacement
(m3/min )
Dew point temperature
(℃)

Dimensions
(mm)

Weight
(Kg)
JJ-7.5AC
1
2~10
620*450*620
45
JJ-10AC
1.5
2~10
750*500*720
46
JJ-15AC
2
2~10
750*500*720
46
JJ-20AC
2.6
2~10
750*500*720
56
JJ-25AC
3
2~10
750*500*720
56
JJ-30AC
4
2~10
950*600*970
81
JJ-40AV
5.5
2~10
950*600*970
81
JJ-50AC
7
2~10
950*600*970
95
JJ-60AC
8.5
2~10
950*600*970
95
JJ-75AC
10.8
2~10
1200*650*1030
150
JJ-100AC
13.8
2~10
1200*650*1030
168
JJ-125AC
17.5
2~10
1200*650*1080
180
JJ-150AC
20
2~10
1470*780*1050
220
JJ-180AC
25
2~10
1470*780*1050
240
JJ-200AC
28
2~10
1600*1050*1420
300
JJ-250AC
32
2~10
1700*1150*1520
350
JJ-300AC
35
2~10
1700*1150*1520
390
JJ-350AC
40
2~10
1700*1150*1520
430
JJ-400AC
45
2~10
2200*1350*1840
510
JJ-450AC
50
2~10
2200*1350*1765
550
JJ-550AC
60
2~10
2200*1350*1765
650
JJ-600AC
65
2~10
2200*1350*1760
620
