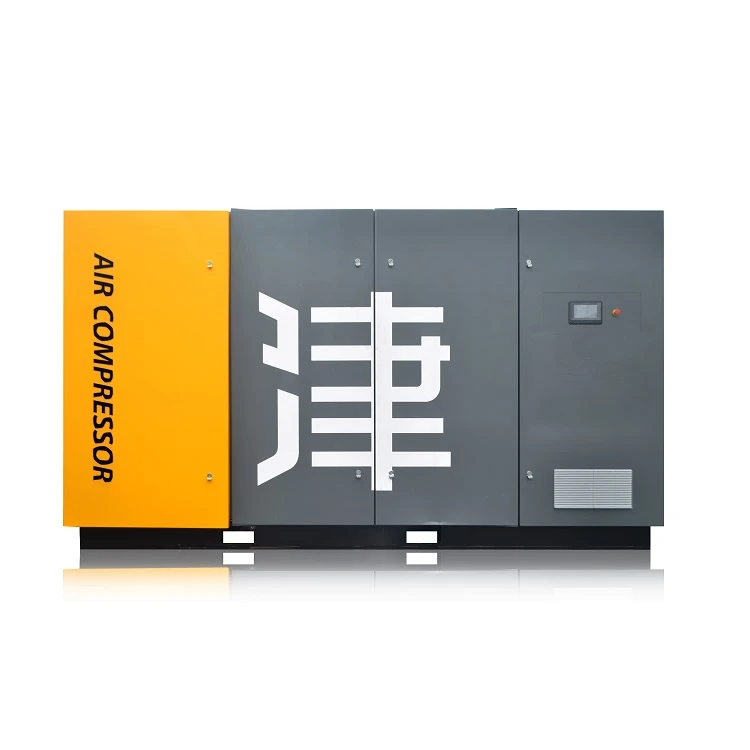

Jinjing 185KW Screw Air Compressor Energy-Saving 40% Two-Stage Power Frequency
Jinjing 185KW Screw Air Compressor Energy-Saving 40% Two-Stage Power Frequency
Jinjing 185KW Screw Air Compressor Energy-Saving 40% Two-Stage Power Frequency
Jinjing 185KW Screw Air Compressor Energy-Saving 40% Two-Stage Power Frequency
Jinjing 185KW Screw Air Compressor Energy-Saving 40% Two-Stage Power Frequency
Price
US $4000-6000
Model
2FSS
MOQ
1 piece

Item specifics

Power
15-315 Kw
Displacement
0.5-67 M3/Min
Pressure
7/8/10/13 Bar

Review

Description

Advantage

01 Features Of Permanent Magnet Variable Frequency Air Compressor

Ultra-low temperature rise design, which allows the compressor to run at the ultra-low frequency for a long time.

Screw Air Compressor

Closed-loop vector control system for faster control and more precise speed control.

The compressor unit can still operate efficiently when the frequency is reduced by more than 50%.

The pressure is stable and the pressure fluctuation is accurately controlled within 0.1 bar.

The figure shows a comparison of several starting methods. It can be seen that the frequency converter is slowly accelerated to start, the starting is more stable, and the current peak is completely avoided.


02 Air End
More stable, no mechanical transmission failure: high-efficiency permanent magnet synchronous motor and screw male rotor adopt embedded-integrated shaft direct connection structure, no gear transmission, completely eliminate gear pitting or broken teeth; Two independent permanent magnet motors are integrated directly drive two air ends, no coupling failures.
More energy efficient, the air end is always running at energy-saving speed.
More efficient and efficient permanent magnet motor + no transmission efficiency loss.
More comfortable, low running noise, eliminating three sources of noise: no-click bearing noise, no gear meshing noise, and no coupling drive noise.
More compact: The permanent magnet motor is small in size and the integrated structure saves space.
Under the set frequency conversion pressure, the unit will automatically adjust to keep the output pressure within + 0.1 bar, reducing unnecessary waste (the power consumption increases by 7% for every 1 bar of pressure increase)

03 Advantages of Permanent Magnet Motors Compared to General Asynchronous Motors
High efficiency: Eliminates excitation system losses and improves efficiency.
It is still efficient under low load conditions: the energy efficiency of a permanent magnet motor is more than 9% higher than that of a conventional asynchronous motor at full load operation, and its energy efficiency remains unchanged as the speed decreases.
Large overdrive torque: The ratio of the maximum starting torque of the permanent magnet synchronous motor to the rated torque can be more than 3 times, while the general asynchronous motor is only 1.6 times.
The control is more stable: the corresponding time of the permanent magnet motor is <50ms, and the gas production can be adjusted in a large range in an instant so that the gas pressure is truly stable.

04 Stainless Steel Piping Design
The piping arrangement is simple and beautiful. Stainless steel piping is designed to effectively prevent rust in the pipeline, and avoid safety accidents caused by leakage of the pipeline.

05 More Advanced Technology. More Powerful Inverter
The standard equipment is equipped with a high-frequency reactor to reduce the high frequency generated by the inverter.
The soft start of the inverter reduces the peak current at startup, resulting in a smooth start and greatly reduced power costs.
Forced cooling of the inverter to prevent a high-temperature shutdown in Summer.
Standard equipment dust screen, circuit board surface coating treatment, high efficiency, and durability against dirt, dust, and moisture.
The special design of the heat dissipation area of the inverter ensures stable operation of the inverter in a high-temperature environment.
No idling occurs under any load conditions to achieve the desired power-saving effect.
Quickly track changes in pressure, control pressure fluctuations within t0.1 bar, and optimize the use of the power to accurately provide the right amount of air as needed.

06 Oil Filter
The imported brand is used to reliably filter the dirt particles in the lubricating oil to ensure the smoothness and lubrication of the oil system at O.1 micron.

07 Air Filter
The imported brand is used to reliably remove dirt from the air. The dust particles in the air are controlled below 0.3 microns and the filtration accuracy is as high as 99.99%.


Screw Air Compressor

Stainless Steel Pipes: High and low temperature resistant, high-pressure resistant.


Air End: Original Jinjing air end, advanced SAP profile design.


Cooler: High-quality aluminum material, alternating expression cooler fins, ensure the perfect radiating effect.

Air Filter: Two-stage dust removal and filtering system with an efficiency of up to 99.9% even in a heavy-duty environment.

Oil Filter: Jinjing filters ensure longer working life and save maintenance time and cost.

Electrical Components: Schneider electrical elements with an original package from France, safe and reliable.
ModelPressure
(mpa)
Displacement
(m³/min)
Power
(kw)
Dimension
(mm)
Weight
(kg)
Outlet Size
2FSS-0.7/150.7 0.7-3.0151450*780*1180660G1-1/4"
2FSS-0.8/150.8 0.7-2.9
2FSS-1.0/151.0 0.6-2.4
2FSS-1.3/151.3 0.5-2.2
2FSS-0.7/18.50.7 0.9-3.818.51450*780*1180680G1-1/2"
2FSS-0.8/18.50.8 0.8-3.5
2FSS-1.0/18.51.0 0.7-2.9
2FSS-1.3/18.51.3 0.7-2.7
2FSS-0.7/220.7 1.1-4.5221500*956*1219730G1-1/2"
2FSS-0.8/220.8 1.1-4.3
2FSS-1.0/221.0 0.8-3.5
2FSS-1.3/221.3 0.7-2.9
2FSS-0.7/300.7 1.6-6.8301650*880*1280980G1-1/2"
2FSS-0.8/300.8 1.5-6.4
2FSS-1.0/301.0 1.2-4.9
2FSS-1.3/301.3 1.1-4.3
2FSS-0.7/370.7 1.9-7.5371800*1254*15601080G1-1/2"
2FSS-0.8/370.8 1.8-7.4
2FSS-1.0/371.0 1.5-6.3
2FSS-1.3/371.3 1.4-5.6
2FSS-0.7/450.7 2.3-10.2452150*1410*16401980G2"
2FSS-0.8/450.8 2.2-9.7
2FSS-1.0/451.0 1.9-7.8
2FSS-1.3/451.3 1.6-6.5
2FSS-0.7/550.7 3.02-13.1552150*1410*16402180G2"
2FSS-0.8/550.8 2.8-12.5
2FSS-1.0/551.0 2.3-10.1
2FSS-1.3/551.3 1.9-8.6
2FSS-0.7/750.7 4.2-17.5752250*1410*16402280DN65
2FSS-0.8/750.8 3.8-16.5
2FSS-1.0/751.0 3.4-13.6
2FSS-1.3/751.3 2.9-11.2
2FSS-0.7/900.7 5.3-20.8902650*1654*18703200DN65
2FSS-0.8/900.8 4.9-20.2
2FSS-1.0/901.0 4.1-16.9
2FSS-1.3/901.3 3.9-15.3
2FSS-0.7/1100.7 6.1-24.51102720*1800*19003360DN80
2FSS-0.8/1100.8 5.8-23.5
2FSS-1.0/1101.0 5.1-20.1
2FSS-1.3/1101.3 4.4-17.6
2FSS-0.7/1320.7 7.2-30.11322850*1854*19003450DN80
2FSS-0.8/1320.8 6.9-28.5
2FSS-1.0/1321.0 6.1-24.1
2FSS-1.3/1321.3 5.4-21.3
2FSS-0.7/1600.7 8.8-351602866*1730*19183850DN80
2FSS-0.8/1600.8 8.1-33.6
2FSS-1.0/1601.0 7.7-31.1
2FSS-1.3/1601.3 6.5-26.3
2FSS-0.7/1850.7 10.7-421853200*1730*19183990DN100
2FSS-0.8/1850.8 10.3-40
2FSS-1.0/1851.0 8.8-35.5
2FSS-1.3/1851.3 7.5-32.4
2FSS-0.7/2000.7 10.7-44.82003300*2060*22805890DN100
2FSS-0.8/2000.8 10.3-43
2FSS-1.0/2001.0 9.2-38.6
2FSS-1.3/2001.3 7.9-33
2FSS-0.7/2200.7 11.7-48.02204000*1780*19686500DN125
2FSS-0.8/2200.8 11.3-47.2
2FSS-1.0/2201.0 9.8-41.2
2FSS-1.3/2201.3 9.1-38.1
2FSS-0.7/2500.7 13.2-55.32504000*2120*22006800DN125
2FSS-0.8/2500.8 13.0-51.0
2FSS-1.0/2501.0 11.0-46.9
2FSS-1.3/2501.3 9.6-41.2
2FSS-0.7/2800.7 14.4-60.02804000*2120*22007200DN125
2FSS-0.8/2800.8 13.2-56.5
2FSS-1.0/2801.0 12.2-51.5
2FSS-1.3/2801.3 10.8-46.5
2FSS-0.7/3150.7 16.2-67.53154450*2200*25007800DN125
2FSS-0.8/3150.8 14.6-62.0
2FSS-1.0/3151.0 13.2-56.5
2FSS-1.3/3151.3 12.2-51.5
2FSS-0.7/280W0.7 14.4-60.02803400*2100*2200
(Water coling)
7200DN125
2FSS-0.8/280W0.8 13.2-56.5
2FSS-1.0/280W1.0 12.2-51.5
2FSS-1.3/280W1.3 10.8-46.5
2FSS-0.7/315W0.7 16.2-67.53152850*2050*2120
(Water coling)
7800DN125
2FSS-0.8/315W0.8 14.6-62.0
2FSS-1.0/315W1.0 13.2-56.5
2FSS-1.3/315W1.3 12.2-51.5
