Middle Pressure 3MPa Combined Piston Air Compressor for Laser Cutting
- Price
- US $3000-5000
- Model
- MPP
- MOQ
- 1 piece
Item specifics
- Power
- 15/18.5/22/25 Kw
- Displacement
- 1.2/1.6/2.0/2.5 m3/Min
- Pressure
- 30/40 Bar
Review
Description

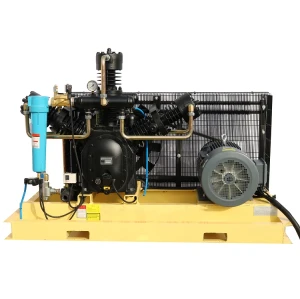

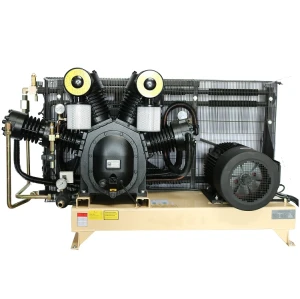

Summary of technical parameters of reciprocating piston medium pressure air compressor
1, Large cylinder diameter, low speed, good reliability, economical and durable.
2, There is no need for a foundation.
3, Interpolar safety valve and pressure gauge to effectively ensure the safety of mechanical operation
4, Continuous supply of compressed air with almost no oil and no water

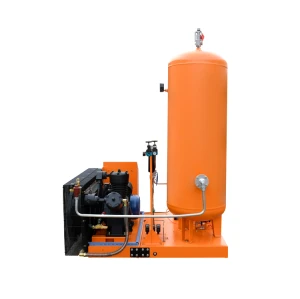

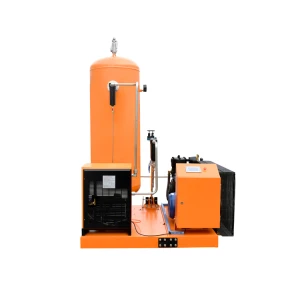

5, The full-performance integrated piston machine, gas storage tank, freeze dryer, and precision filter are integrated into one. Through the whole connection of the metal pipe, the user site does not need to connect the secondary pipeline of the equipment, which is convenient to install, simple to use, and flexible to move, the installation is convenient, the use is simple, and the movement is flexible. Compressor for Laser Cutting
| Combined Medium Pressure Air Compressor Product Parameters | ||||
| Category | Model | Pressure (bar) | Displacement (m³/min) | Motor Power (kw) |
| Laser cutting supporting air compressor | MPP-LC-1.2 | 30/40 | 1.2 | 15 |
| MPP-LC-1.6 | 1.6 | 18.5 | ||
| MPP-LC-2.0 | 2.0 | 22 | ||
| MPP-LC-2.5 | 2.5 | 25 | ||
